The all new next generation enviro-friendly VERTIX range of elevators from Teknix in collaboration with SRH aufzuge GmbH brings you the ultimate German technology and craftsmanship with all the essential features and giving you a uparrelled comfort ride.
Experience elevators that are crafted for mass housing projects with ultimate technology backed by german technology.
MRL/MMR
408-1020 kgs ( 6-15 Pax)
1 -1.5 m/s
2 – 15
Gearless PMSM/Frequency Controlled
Full Collective Selective
700/800/900mm
2000mm
Protects against unintended car Movement caused by snapping of ropes.
Any malfunction of light curtain, the motor returns the doors on sensing the pressure of a object in between the doors.
Automatic rescue device as a standard which brings the elevator to the nearest floor incase of power failure.
Vertix gearless machines are equipped with dual vented disc brakes for a safe and smooth breaking.
Protects the occupants incase of elevator overshoot or undershoot with three stage terminal limit cut off system for extra occupant safety.
Hydraulic Pit Buffer system with terminal switch for electric circuit detachment for additional safety.
Protects against overspeed with downward over speed protection device with terminal switch for electric circuit detachment.
Protection against overloading of the elevator than the desired load capacity.
Provides an invisible safety net at the entrance of the elevator and quickly responds to any person or object coming into the detection plane.
Vertix door comes with 120 minutes of fire rating as a standard certified as per the confirmative European code.
Control system : Multiple microcomputer based close-loop control system with direct landing technology
Drive : Frequency controlled permanent magnet synchronous motor based gearless traction machine with dual vented disc brakes
Curve Generation : Microcomputer senses the load in the elevator & generates the S curve based on the torque required automatically
Door Operator : VVVF door operating system with close loop control
Door Protection : Full length infrared light curtain provided for safety of passengers

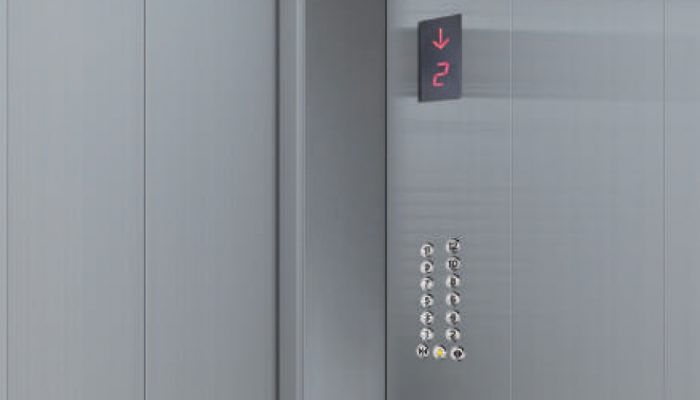

Human Interface Device : Stylish Integrated Car operating Panel & Surface mounted Landing Operating Panel with auto attendant key and auto light and fan function
Operation : Full Collective Selective
Direction Indicators : Car & Landing Operating Panels will be equipped with direction and floor indication display for easy facilitation of passengers
Call Cancellation : Wrong Destination call can be cancelled by double press of destination button
Auto on/off : Ventilation & lighting would have automatic on/off function
Overspeed Protection : When elevator speed is more then the calibrated speed, the device will automatically stop the elevator motor and activate the car safety device in turn activating the unintended car movement device to stop the car from moving further.
Automatic Rescue Device : Automatic Rescue Device will be provided in the elevator, which brings the elevator to the nearest landing in case of power failure
Car Illumination : LED power saving lighting inside the car for illumination
Car Ventilation : Cross Flow Ventilation system in the car
Power Supply : AC415V, 3phase & AC220V , 1phase , 50HZ AC
Phase Loss Protection : Automatic Phase loss protection system stop the elevator when it senses the loss of one of the three phases
Over – run Protection system : Up/Down overrun protection System with triple layer limit switch for extra safety
